NUX NDO-5 Analog Dual Effect Pedal Overdrive ACE OF TONE
Description
Description

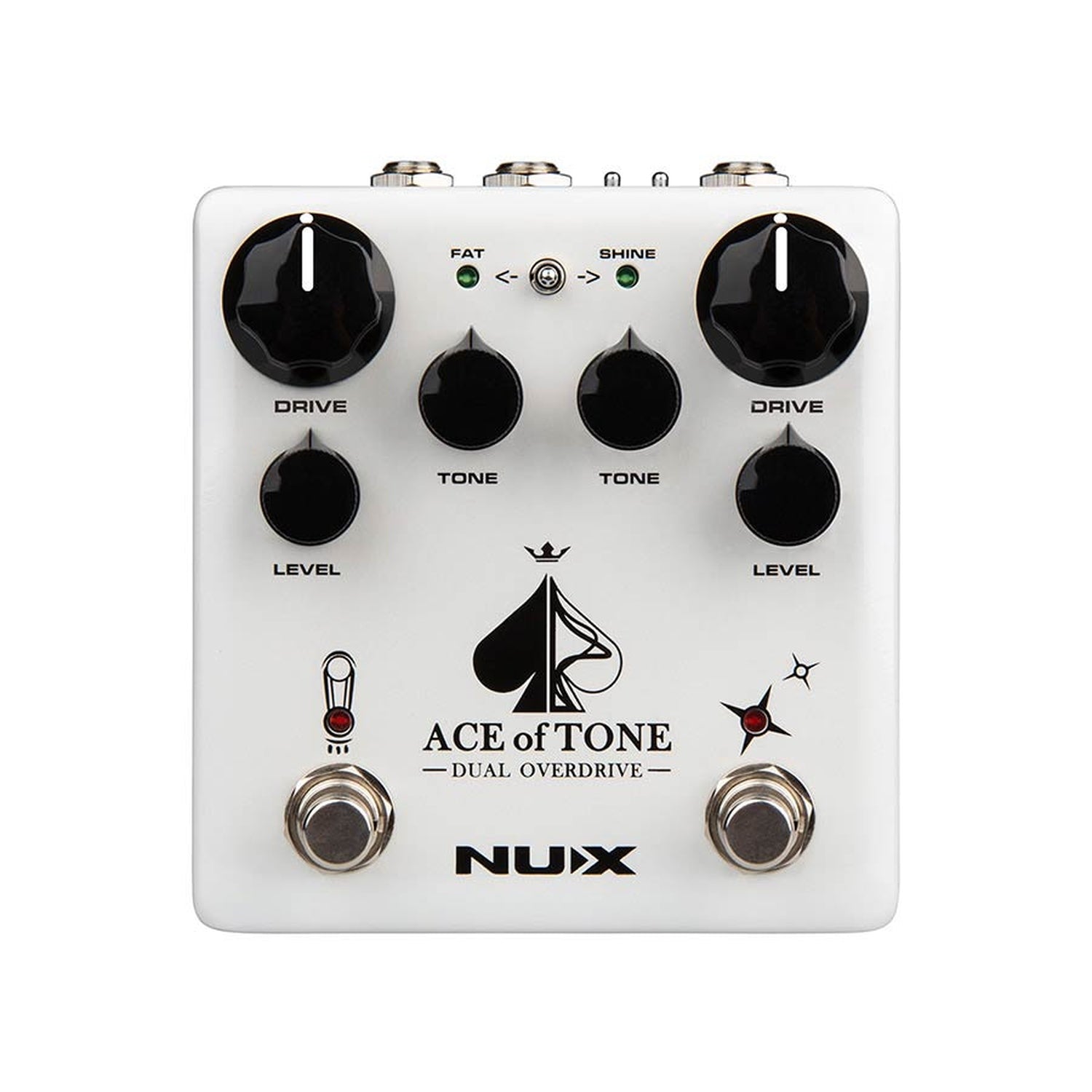

The NUX Ace of Tone combines two iconic overdrive circuits into one pedal: the Tubeman MKII and the Morning Star . This combination allows guitarists to create their ideal overdrive sound , with versatile stacking and routing options.
Features & Functions
- Two independent overdrives : Tubeman and Morning Star
- FAT mode (Tubeman): increases bass response for a warmer tone
- SHINE mode (Morning Star): Boost high frequencies for extra clarity
- Switchable effect order : Morning Star → Tubeman or Tubeman → Morning Star
- True Bypass / Buffered Bypass : choice between TB or BF via switch
- 9V/18V mode : internal voltage doubling for greater dynamic range
Operation & Controls
Left side (Tubeman)
- Drive : Adjusts the gain
- Tone : Determines the amount of treble
- Level : Adjusts the output volume
- FAT mode : Press and hold to turn on
Right Side (Morning Star)
- Drive : Adjusts the gain
- Tone : Determines the amount of treble
- Level : Adjusts the output volume
- SHINE mode : Press and hold to turn on
Connections & Switches
- Input : guitar input
- Output : to amplifier
- EXT. SW : external foot controller connection (e.g. NUX NMP-2)
- Effect order switch : adjust the order of the overdrives
- BF/TB switch : choice between Buffered Bypass and True Bypass
- 9V/18V switch : increases internal voltage for extra headroom
Specifications
- Input Impedance : 2.2M Ohm
- Output Impedance : 1k Ohm
- Power supply : 9V DC (negative tip, optional ACD-006A adapter)
- Current consumption : <100mA
- Dimensions : 105 (L) x 115 (W) x 58 (H) mm
- Weight : 440g
